Deploy IBM Sterling Connect:Direct WebService on OpenShift using Ansible Scripts

Playbook will run the last version of Connect:Direct WebService, but take care of Kubernetes/Openshift version is supported

C:D WebService OpenShift Kubernetes helm-chart Helm
6.4.0.0_ifix000 >= 4.14 and <= 4.16 >=1.27.0 <1.30.0 1.1.0 >= 3.14.x
6.3.0.11_ifix000 >= 4.14 and <= 4.16 >=1.27.0 <1.30.0 1.0.4 >= 3.14.x
6.3.0.9_ifix000 >= 4.14 and <= 4.16 >=1.27.0 <1.30.0 1.0.2 >= 3.14.x

Preparation

1. IBM Entitled Registry

You must have kubectl, oc, git and ansible installed in your machine

Log in the IBM Container software library with the IBMid and password that are associated with the entitled software. Click Get entitlement key. With key export variable

export ENTITLED_REGISTRY_KEY=<entitlement_key>

2. Login on OpenShift

Do a login in Openshift console and run the command:

oc login --token=sha256~P...k --server=https://c....containers.cloud.xxx.com:31234

3. Cloning ansible-ibm-websphere from git

git clone https://github.com/ibm-sterling-devops/ansible-ibm-sterling.git

4. Set roles path

To run playbook the playbook

cd ansible-ibm-sterling

export ANSIBLE_CONFIG=./ansible.cfg

Deploy you Connect:Direct WebService

1) To run the playbook

ansible-playbook playbooks/deploy_cdws.yml

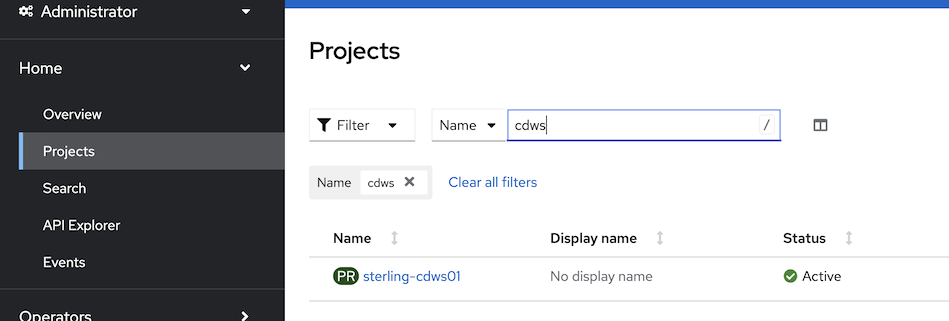

check for sterling-cdws01 namespace in Kubernetes/Openshift console.

Examples

Example 1: Change namespace and C:D node name

To change namespace/project and C:D node name

cd ansible-ibm-sterling

export CDWS_NAMESPACE=sterling-cdws01

ansible-playbook playbooks/deploy_cd.yml

Environment Variable

Environment variables for this role:

Environment Variable Default Value Required Description
ENTITLED_REGISTRY_KEY N/A Yes Entitlement registry key
CDWS_NAMESPACE sterling-cdws01 Yes Namespace for C:D application
CDWS_VERSION 6.3.0.8_ifix000 No Version of C:D container to deploy
CDWS_TRUSTSTOREPASSWORD changeit No Password for truststore
CDWS_KEYSTOREPASSWORD changeit No Password for keystore
CDWS_CACERT_PASSWORD passw0rd No Password for CA certificate
CDWS_LICENSE_TYPE non-prod No License type for C:D application (prod or non-prod)
CDWS_STORAGE_CLASS - Yes Storage class to be used for the container
CDWS_STORAGE_CAPACITY 500Mi No Storage capacity to be allocated to the container
CDWS_CPU_LIMITS 3000m No CPU limit for the container
CDWS_MEM_LIMITS 2Gi No Memory limit for the container
CDWS_CPU_REQUESTS 1500m No CPU request for the container
CDWS_MEM_REQUESTS 1Gi No Memory request for the container
